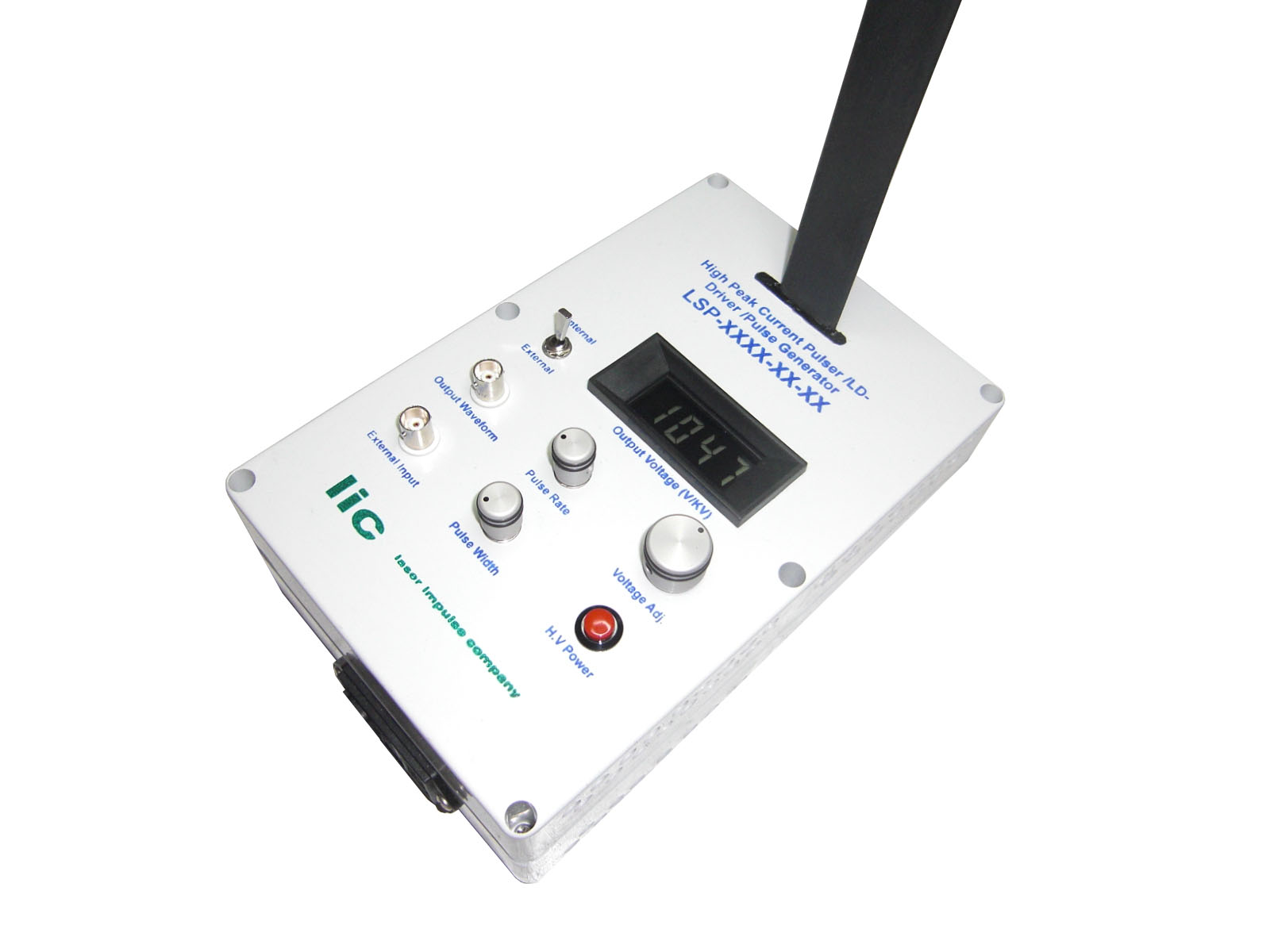

• LSP-XXXX-XX series high power laser diode driver/power supply, high current pulser and high voltage pulse generator have many models from 500A-5KA, the output voltages from 1.4KV to 15KV and the rise time from picoseconds to nanoseconds. Applications include:
  • High Current Pulse Generator: From 500A to 5KA
  • High Voltage Pulse Generator: From 500V to 15KV
  • Pulsed Laser Diode Power Supply
  • Pulse Rate from 1Hz to 10KHz
  • LSP (Lic Super Pulse) Operation

Key Features

  • High Current: up to 5KA (capable of LSP )
  • High Speed Pulser: Rrise time of 3ns-15 ns
  • Pulse Width of 5ns-100ns
  • High Voltage from 1.4KV-15KV
  • Built-in H.V power supply

Specifications

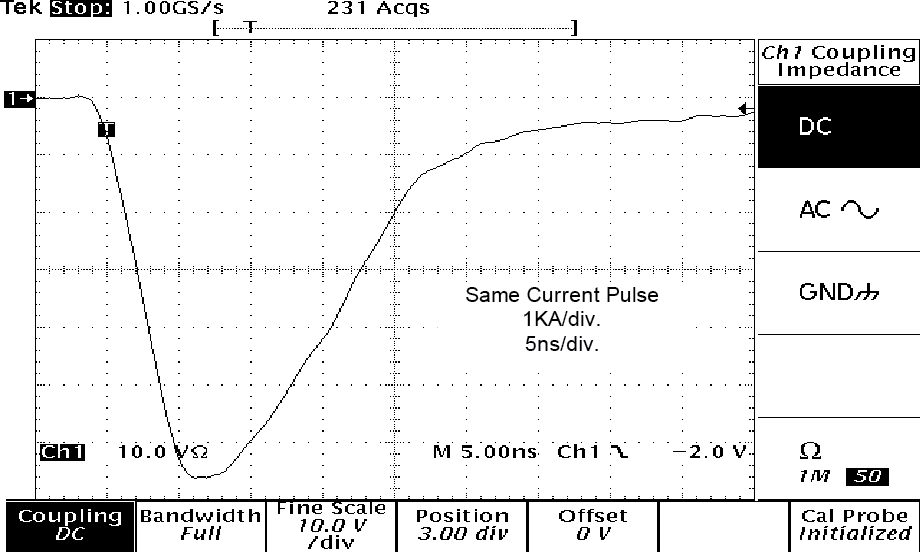

                                 (Waveform taken with LSP-5000-20-XK)



LSP-5000-20-XK:

Output Current:
LSP (Lic Super Pulse): 500A – 5KA Pulsed Peak Current
Output Voltage:
1.4KV-15KV (User Selectable)
Pulse Shape:
Exponential. Refer to Operating Manual.
Rise Time:
5ns-10ns
Pulse Width (typical):
20ns*1)
Maximum Pulse Rate:
50Hz*2)
Output Terminal:
0.6″(W)x0.6″(L) – 1.2″(W)x15″(L) Stripline (Contact to Factory)
Dimension (Including H.V power supply)
5.75″(W)x8.75″(L)x3.1″(H)  Excluding Stripline
Weight
5 lb – 8lb
Cooling
Convection Air Cooled.
Note *1):
Pulse With is user selectable (Factory Set).
Note *2):
Maximum Pulse Rate is depend on the capacity of the H.V source.
