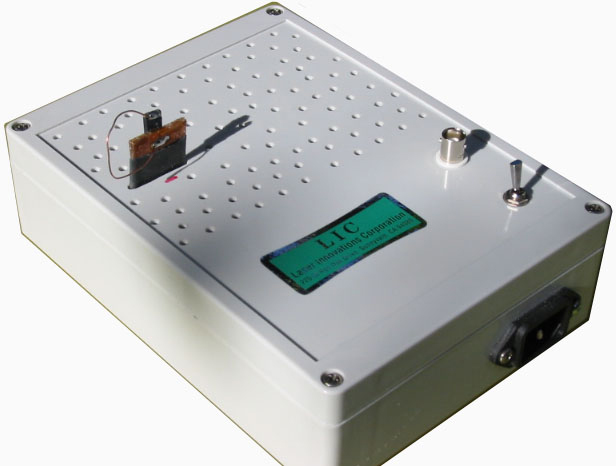

LSP-2500-15KV-20NS is designed for driving Vcsel (Vertical-Cavity Surface-Emitting Laser)  diode and  for High Speed Gas Discharge Applications.  Applications include:

  • High Current Pulse Generator, High Power Diode Laser Driver/Power Supply
  • Pockels Cell Driver, High Current Pulsed Diode Laser Power Supply/Driver
  • High Voltage Pulse Generator, High Power Laser Diode Driver
  • H.V Trigger Circuit
  • Thyratron Replacement
  • Vecsel Laser Diode Driver
  • High Power Laser Diode Driver/Power Supply

Key Features

  • Ultra High Peak Current Laser Diode Driver: Up to 2.5KA
  • Ultra High Voltage Laser Diode Driver/High Voltage Pulse Generator: to 15KV
  • Pulse Width: 20ns
  • Rise Time: 5ns-15ns
  • High Power Pulsed Laser Diode Driver:  15KV/2.5KA with rise time of 3ns-15ns

Specifications

LSP-2500-20N-15KV Waveform

AC Input Voltage:115V

Output Current:LSP (Lic Super Pulse):2.5KA, pulsed peak current

Output Voltage:1.4KV-15KV (User Selectable)

Pulse Shape:Exponential

Rise Time:3ns-15ns

Pulse Width (typical):5ns-100ns*1)

Maximum Pulse Rate:1KHz*2)

Current Monitor:50ohm BNC, 100mV/A

Note *1):Pulse With is user selectable (Factory Set).

Note *2):Maximum Pulse Rate is depend on the capacity of the H.V source.Contact to Factory for detail.

Dimension (Including H.V power supply):6″(W)x8″(L)x2.5″(H),  Excluding Stripline

Weight:5.5 lb

Cooling:Convection Air Cooled
