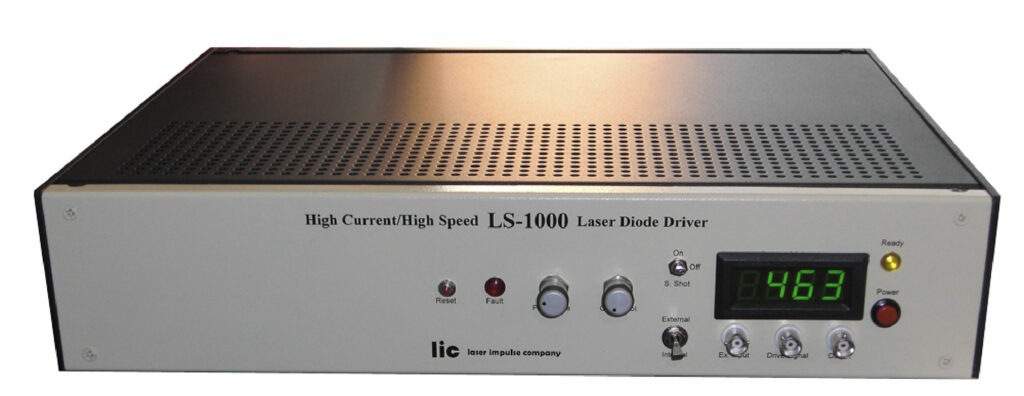

Narrow Pulse & High Power Laser Diode Driver / High Current Pulser.

LS-XXXX -series high frequency, high power pulsed laser diode drivers can achieve the pulse rate up to 5MHz with the pulse width of 5ns to 50ns.

  • High Speed Laser Diode Driver: Maximum frequency up to 5MHz
  • High Power Pulsed Laser Diode Driver: Up to 2KW continues power.
  • Pulsed Laser Diode Driver/High Voltage Pulser: Up to 15KV
  • Multi-Channel Gas Discharge Driver.

Key Features

  • High Frequency Gas Discharge Applications to 5MHz
  • High Current Pulse Generator to 500A
  • High Voltage Pulse Generator/Pulser to 15KV
  • Pulse Width from 10ns to 50ns

Specifications

CW average Power
Up to 1KW
Output Voltage
Up to 1KV
Output Current
Up to 500A (Exponential)
Output Configuration
Negative Output (standard)
Pulse Rep. Rate
Single shot to 100KHz
Pulse Rise Time
Less than 4 ns
Pulse Width
5ns to 100ns
AC Input Voltage
90-120V (less than 500W of CW power), or 180-240V, single & three phase
Efficiency
Greater than 70%
Current Monitor
50 Ohm BNC, 10mV-100mV/A
External Pulse
1 Kohm BNC Input
Protection mode
Switching Over Current, Over Load, Over Temperature, Interlock.
Dimensions
3.5″(H) x 17.0″(W) x 13.0″(L) inch,
Weights
10.5 lb.
Cooling
Forced Air,
